the most innovative and exciting extension of your setup

- Comprehensive, all-in one solution far intricate rhythms Echo space and width

- Direct and immediate access to all parameters with dedicated knobs

- True-stereo indipendent delay allowing you to create complex rhythmic patterns

- Reverbs with Size and Resonance HiPass filter - knobs

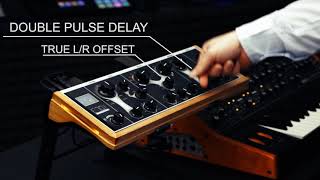

- Double Pulse Delay

- Double Resonant filter that can be morphed from low pass to high pass

- 4 Waveform Sync-able LFO

- A full, four-channel (quadraphonic) system reproducing the Left  Front, Left Back, Right Front, and Right Back audio signals in each of four separate speakers

- Mixer stage for DRY, WET and DPD

- Assignable Foot Switch

- Tap Tempo

- Intuitive OLED Display

- USB or 5-pin MIDI interface IN, OUT and THRU

- Supreme Audio Quality - 24 bit -96Khz Audio Converter

Input Type:  1/4” Unbalanced TS

Input Impedance:  13,9KOhm

Max Input Level:  2.0 VRMS (+6dBu)

Output Type:  1/4” Unbalanced TS

Output Impedance:  336Ω

Latency (Audio input to Audio Output) : 1,2ms

Max Output Level:  2.5Vpp

Bit Depth : 24 bit

Presets:  User presets

Display:  OLED


- 2 Line In 1/4 Jack for audio signal

- 4 Line OUT  1/4 Jack Output with line level audio (a full quadraphonic four channels system)

Midi IN, OUT e THRU -


2 Foot Switch 1/4 Jack
